Yuchai Marine Engine

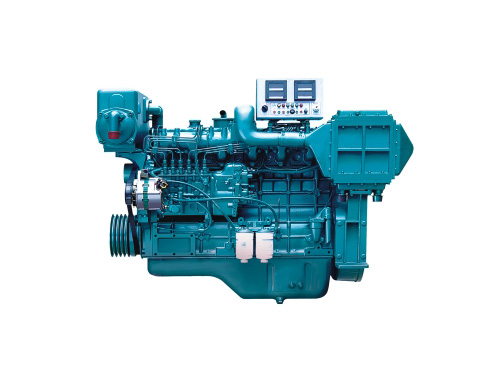

YUCHAI Marine Engine YC6105CA1 and spare parts

YUCHAI Marine Engine YC6105CA1 and spare parts

General Information of Yuchai YC6105CA1 Marine Engine
Engine Model	YC6105CA1
Configuration	Vertical,in-line,4-stroke， Direct injection
Number of valves per cylinder	6-valve
Piston displacement (L)	6.494L
Net Weight	700kg
Dimensions (L × W × H) (mm)	1252×780×1075
Bore*Stroke(mm)	105* 125
Compression ratio	16.5:1

Technical Specification of Yuchai YC6105CA1 Marine Engine
Aspiration	Naturally aspirated
Governor	Electric starter
Continuous power / speed (kW (Ps) / r / min)	66(90)/2000
Overload power / speed (kW (Ps) / r / min)	72.6(100)/2064
Engine Cooling System	Water cooled

Performance Data of Yuchai YC6105CA1 Marine Engine
Fuel consumption at full load (g / kW ∙ h)	≤200
Oil consumption (g / kW • h)	≤0.8
Crankshaft rotation direction (facing the power output terminal)	Anticlockwise
Adapter gear box	HC65、120C、MB170 etc.
certificate	ZC、CCS
As optional of Yuchai YC6105CA1 Marine Engine
Control Panel	As optional
