CCEC Cummins Spare Parts

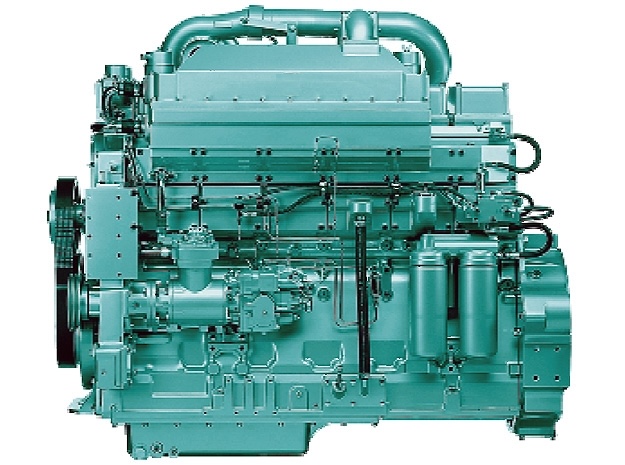

Cummins KTA19-DM Spare Parts Catalog

Cummins KTA19-DM Spare Parts Catalog
Item	Parts Name	Part No.	Unit	Qty.	Description	Part No.	Qty.
1	Piston	3096680	6 set	25	Valve, Spring(short)	3633840	24 pc
2	Piston	3096681	6 set	26	Head, Cylinder M500	3021692	6 pc
3	Piston	3096682	6 pc	27	Head, Cylinder G3-G4	3811985	6 pc
4	Piston	3096683	6 pc	28	Gasket, Cylinder Head	3166289	6 pc
5	Piston	3096685	6 pc	29	Injector M470/500	3022197	6 pc
6	Piston	3070707	6 pc	30	Injector G1/2	3016676	6 pc
7	Pin, Piston	205200	6 pc	31	Injector G	3016675	6 pc
8	Ring, Piston	4089500	6 set	32	Injector M600	3087587	6 pc
9	Liner, Cylinder	4009220	6 pc	33	Injector G3-G4	3095773	1 pc
10	Bearing, Main +0.00	AR12270	1 set	34	Turbocharger M500	3594027	1 pc
11	Bearing, Main +0.25	AR12271	1 set	35	Turbocharger M600/640	3537685	1 pc
12	Bearing, Main +0.50	AR12272	1 set	36	Turbocharger G4	3594134	1 pc
13	Bearing, Con Rod +0.00	205840	1 set	37	Turbocharger G3	3094131	1 pc
14	Bearing, Con Rod +0.25	205841	1 set	38	Water Pump	3098960	1 pc
15	Bearing, Con Rod +0.50	205842	1 set	39	Set, Upper Engine Gasket	3803598	1 pc
16	Rod, Engine Connecting	3811995	6 pc	40	Set, Lower Engine Gasket	3801007	1 pc
17	Rod, Push	205492	12 pc	41	Core, Aftercooler	3331668	2 pc
18	Rod, Push	3017961	6 pc	42	Core, Aftercooler	3001299	1 pc
19	Lub Oil Pump	3047549	1 set	43	Guide, Valve Stem	3202210	24 pc
20	Valve, Intake	207241	12 pc	44	Seal, Liner Cylinder	AR70577	6 pc
21	Valve, Exhaust	3035110	12 pc	45	Seal Oil Support		1
22	Valve Spring(long)	205208	24 pc	46	Seal, Oil		1 pc
23	Valve, Intake	3052820	12 pc	47	Seal, Oil		1
24	Valve, Exhaust	3088389	12 pc
